12 inch ST4K 20 LED Double Row Bar

SKU: LEDST4K-12-20L

PERFORMANCE THAT LETS YOU TURN THE SUN BACK ON

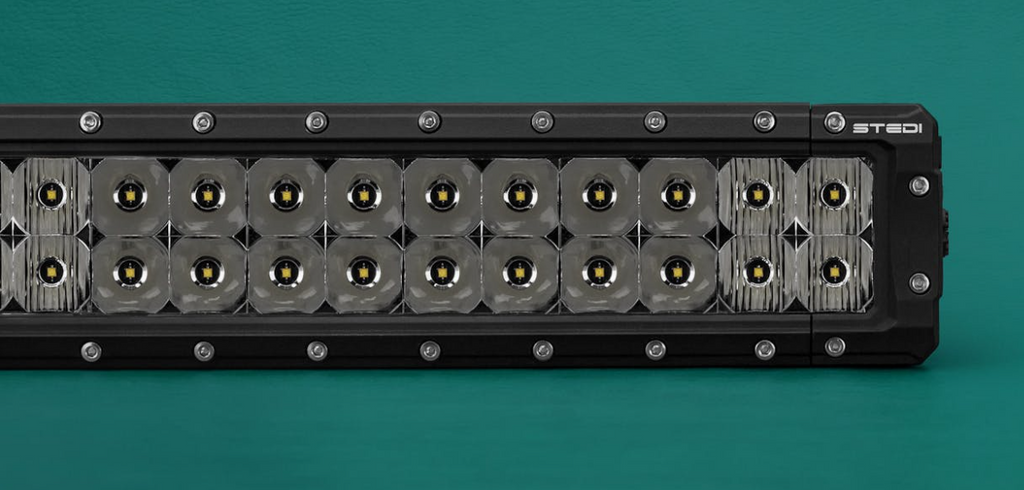

• STEDI™ ST4K-20 features 20 of OSRAM’s® finest OSLON® LED, selected for their high luminous flux and perfectly matching optical properties.

• 4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 468m

• Crystal White 5700K Colour temperature offers stunning clarity and definition with excellent Colour Rendering Index (CRI).

• Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.

BUILT TO GO ALL NIGHT

• A360.0 Cast face plate, extruded Aluminum heat sinkg | finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.

• Pressure Equalization vent with Gore® membrane | Protects against water ingress, dust & contaminants.

• IP68 | Dust & Particle tight + Water-proof up to 3 meters – Drown it, we insist!

• Environmentally sealed Deutsch ® DT connector.

Backed by our no nonsense 5-year replacement warranty.

MOUNT IT YOUR WAY;

We know you want flexible mounting options, which is why we've included two seperate mounting options.

• The included adjustable sliding mounts allow you to align the mount bolts to any pre-existing mounting holes. Make mounting to UHF tabs or Bull bar dech very straight forward.

• Or use our 3mm thick 304 Stainless steel side brackets, which feature + or - 15mm height adjustment.

5 Year Replacement Warranty backed by an Australian company with bricks & mortar presence.

Tech Specs

What's Included

• 1 x 12 inch 20 LED STEDI Oslon LED Light Bar
• 2 x Brushed Stainless Steel Side Brackets
• 2 x Adjustable Sliding Brackets
• Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
