KEY TECHNICAL DETAILS
- Built-in LED Day-time Running Light (DRL)
- High-Performance 18W CREE XHP50
- UV Stable Automotive Grade PC Primary Lens
- Environmentally sealed Deutsch DT connector
- Pressure Equalisation Vent | Eliminates condensation
- IP68 Ingress Protection | Protected from immersion between 15 centimeters and 1 meter in depth for 10min at a time
- 50,000 hours Lifespan
- 24-month Warranty
- 5700K CCT
- Includes all required tilt adjust spring and screw
- All Alloy outer casing
- RFI & EMI Suppression Circuitry
The price quoted is for pair of Boost Driving Lights and Brackets
If you're unsure whether your vehicle is eligible feel free to get in touch with us for advice.
STEDI Designed & Manufactured.
All product and company names are the registered trademarks of their original owners. The use of any trade name or trademark is for compatibility and reference purposes only and does not imply any association with the trademark holder of their product brand.
COMPATIBLE VEHICLES:
Compatible with Incandescent indicator AFN bullbars only. If your bullbar has new LED style indicators this will not be compatible. Click here to see if your bullbar is compatible.
Please note: Boost integrated driving lights require a high beam triggered wiring loom available here.
Tech Specs
BOOST INTEGRATED DRIVING LIGHT | |
LED CHIP | 1 x 18w CREE XHP50 |
LENS | Polycarbonate Surface Hardening |
RAW LUMENS | 2080lm |
TESTED LUMENS | 1800lm |
BEAM PATTERN | Spot |
AMP DRAW | 1.25A @ 12V |
POWER | 17W |
DRL | 0.25A @ 12V 3W |
INGRESS PROTECTION | IP68 |
COLOUR TEMPERATURE (CCT) | 5700k |
OPERATING TEMPERATURE | -40~+60 degrees |
WEIGHT | 0.35kg |
LIFETIME | 50,000hrs |
CERTIFICATION | CISPR 25 Class 3 |
What's Included

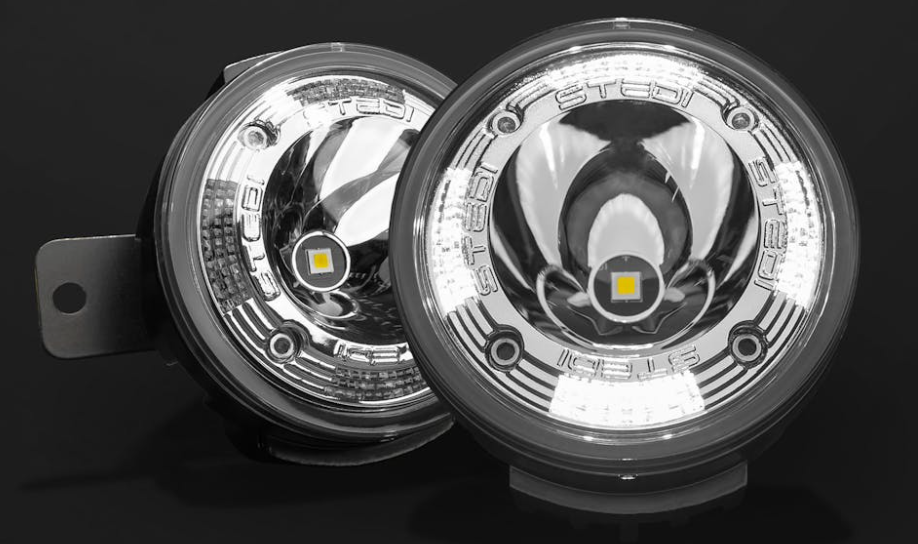

- 2 x STEDI™ Boost LED Driving Lights
- 2 x Boost Brackets to suit AFN bullbar
- Mounting Hardware
- User instruction manual
Please note: Boost integrated driving lights require a high beam triggered wiring loom available here.
