SKU: LEDMOTO-CARBON-7BLK

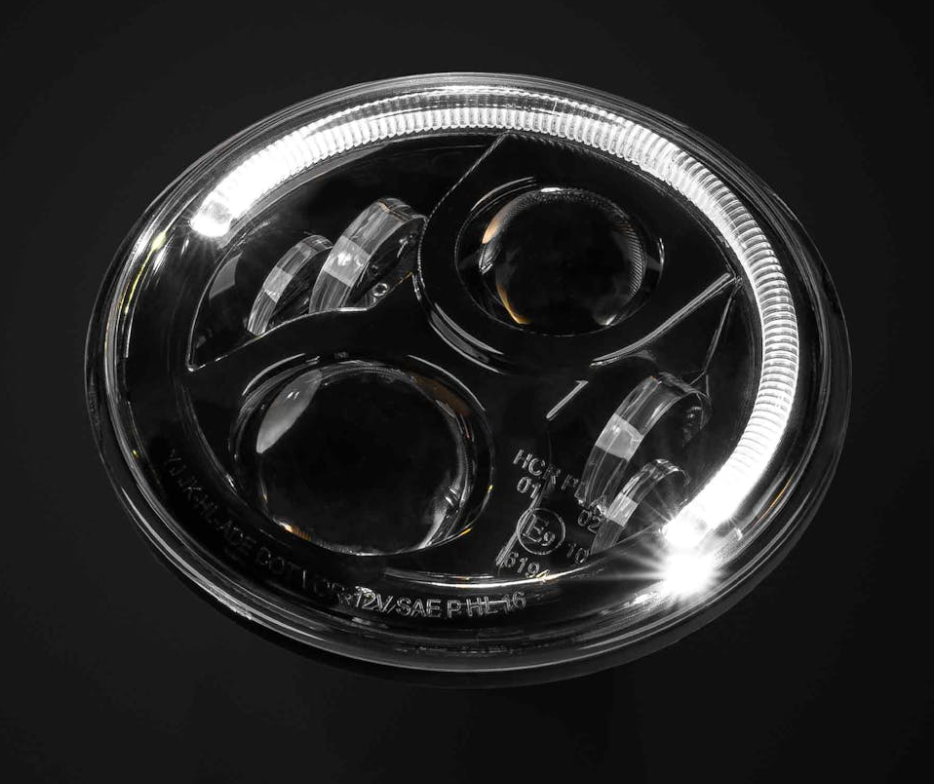

Our CARBON 7 Inch LED Driving Lights should be the first step when improving your motorcycles light output. Complete with High and Low beam as well as a half LED halo ring park light, the CARBON 7" is the perfect replacement for your existing headlight.
KEY PERFORMANCE METRICS
- ADR Approved E-Mark CE
- Proper Right Hand Drive Beam Geometry
- H4 Adaptor
- High Beam 1 Lux @ 235m
- Low Beam 1 Lux @ 141m
PERFORMANCE BUILD QUALITY
- Anodized Polyester Powdercoat
- Lexan Polycarbonate (PC) Lens refractor
- Die-cast aluminium alloy (ADC12) Heat-Sink
- IP67 | Ingress Protection
- Shock Proof, Waterproof and UV Shielded
- Protected against Reverse Polarity and Voltage / Current surges
- Warranty | 2 Years
COMPATIBLE MODELS:
- 1955-1983 Jeep CJ-5
- 1976-1986 Jeep CJ-7
- 1981-1985 Jeep CJ-8
- 1997-2006 Jeep Wrangler (TJ)
- 2007-2015 Jeep Wrangler 2-Door (JK)
- 2007-2015 Jeep Wrangler Unlimited 4-Door (JK)
- 1982 - 1991 Mitsubishi Pajero (L040)
- Land Rover Defender
- 70 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
- 60 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
- Toyota FJ-40/45/47 (Needs additional H4 CANBUS to resolve negative switching)
- GQ Patrol
- Harley Davidson Motorcycles
- Mercedes Benz G Wagon
- Kenworth Trucks with 7 inch round headlight
Tech Specs
| LED | High Beam: 2 x 10w XML-2 LED Low Beam: 2 x 15w LED Park Light: 2 x 1.5w Osram |
| RAW LUMENS | High Beam: 1800Lm Low Beam: 1250Lm Park Light: 150Lm |
| AMP DRAW | High Beam: 2.4a @ 13.6v Low Beam: 1.6a @ 13.6v Park Light: 0.2a @ 13.6v |
| LIFESPAN | 50,000 Hours |
| INGRESS PROTECTION | IP67 |
| OPERATING TEMPERATURE | -30°C~+60°C |
| LENS MATERIAL | LEXAN Polycarbonate |
| COLOUR TEMP | 5700K |
| VOLTAGE COMPATIBILITY | 12v & 24v |
| PEAK BEAM DISTANCE @ 1 LUX | High Beam: 235m Low Beam: 141m Park Light: 8m |
| WEIGHT (each) | 1.140kg each |
| DROP IN REPLACEMENT FOR |
#6014, 6015, 6016, H6024 and Par 56 headlamp designs |
|
ADR COMPLIANCE |
ADR 46/00 ADR 49/00 |
What's Included
- 1 x 7 inch STEDI CARBON CHARCOAL LED Headlight
