SKU: LEDST2K-50-20L
ADVANTAGES OF A LATERAL SPOT BEAM
- Excellent well rounded mid to long-range illumination
- Significantly minimizes adverse reflection from road signs
- Eliminates light wasted on illuminating tree tops (won’t disturb sleeping koalas)
- An excellent alternative to HID, without the associated downsides
- The beam is 90m wide at approx 250m
KEY FEATURES
- LED Parking / Position Light Function
- Breather allows pressure equalization when rapid heat up and cool down cycles occur.
- Anodized Polyester Powder Coat
- Weatherproof Deutsch® DT2 Connector.
- Includes adjustable side brackets
- Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (compatible with both negative and positive switched vehicles).
- Protected against reverse polarity
- Shockproof, IP68 waterproof, UV Shielded
- Protected against RFI / EMC Interference
- Voltage & current surge protection
- Pulse Width Modulation Thermal Management
Click here to find your vehicle-compatible Piggyback Adapter.
Tech Specs
| MAIN BEAM LED COUNT | 20 x 15W |
| VOLTAGE | 12V & 24V |
| DRL VOLTAGE | 12-24V compatible |
| LENS MATERIAL | Optical Grade, Hard Coated Lexan |
| LUMENS | 20,000 |
| HOUSING MATERIAL | 6063 Extrusion |
| AMPERES | 20.7A @ 13.2v |
| LIFESPAN | 50,000 |
| SPOT BEAM | Driving Beam |
| INGRESS PROTECTION | IP68 |
| OPERATING TEMP | -40°C ~ +150°C |
| WEIGHT | 5.790kg |
| CERTIFICATES | E-Mark R10 | CE ✓ |
What's Included

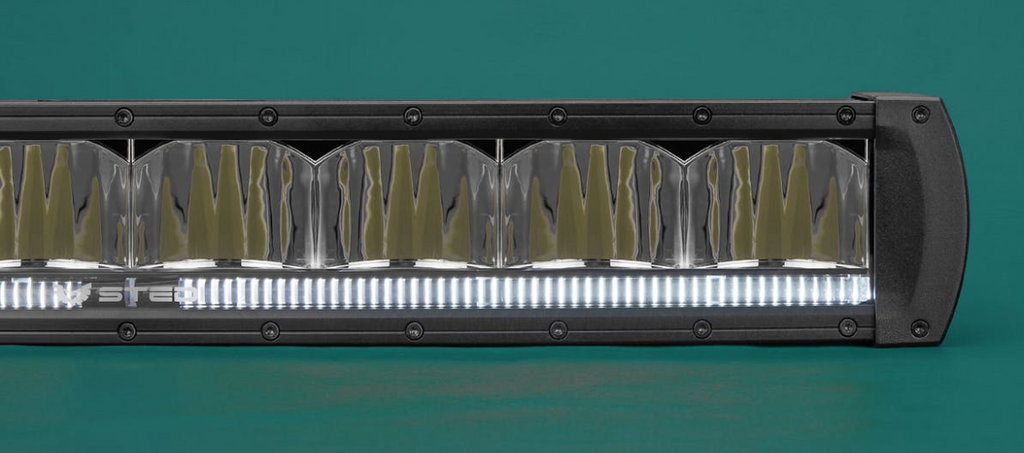

- 1 x 50.8" ST2K-20L LED Light Bar
- 2 x Steel Side Brackets
- Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
- Wiring Instructions
- Comprehensive 304 Stainless Steel fasteners
