ADVANTAGES OF A LATERAL SPOT BEAM
- Excellent well rounded mid to long-range illumination
- Significantly minimizes adverse reflection from road signs
- Eliminates light wasted on illuminating tree tops (won’t disturb sleeping koalas)
- An excellent alternative to HID, without the associated downsides
- The beam is 139m wide at approx 575m
KEY FEATURES
- LED Parking / Position Light Function
- Breather allows pressure equalization when rapid heat up and cool down cycles occur.
- Lumes: 12000
- Anodized Polyester Powder Coat

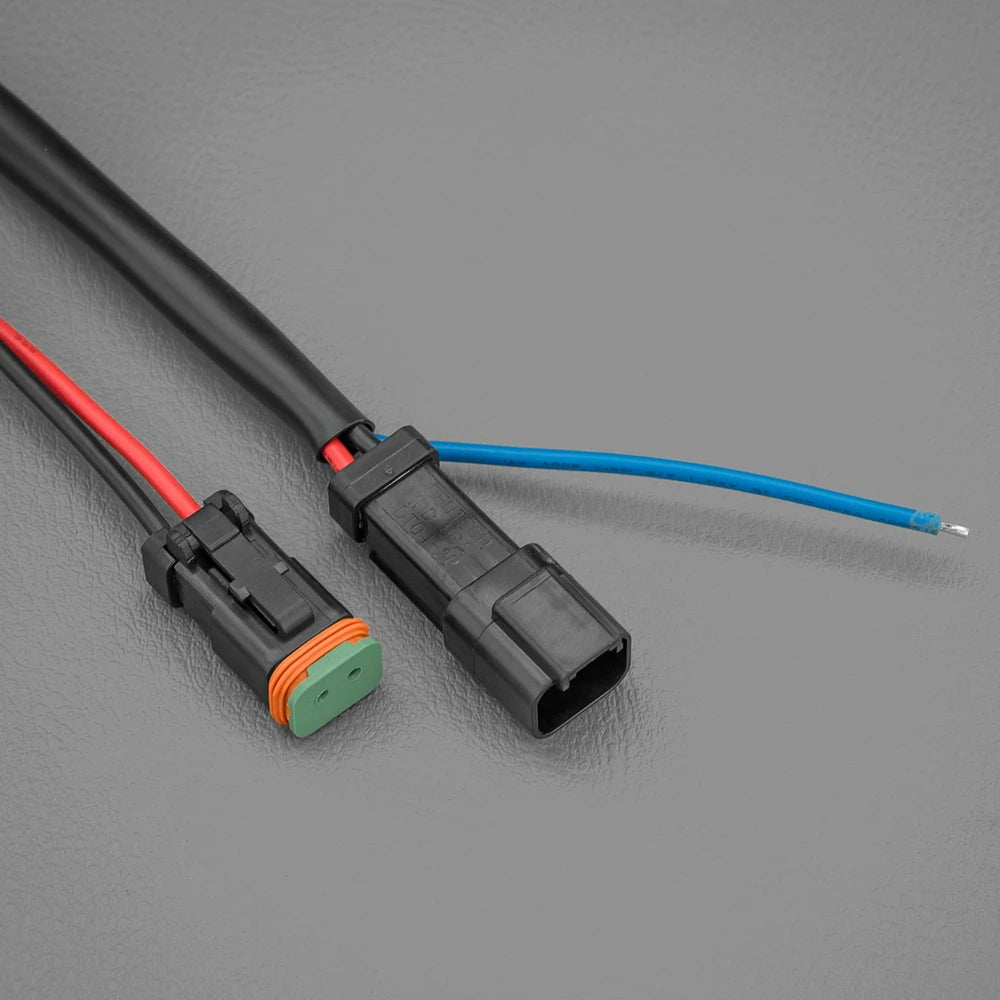

- Weatherproof Deutsch® DT2 Connector.

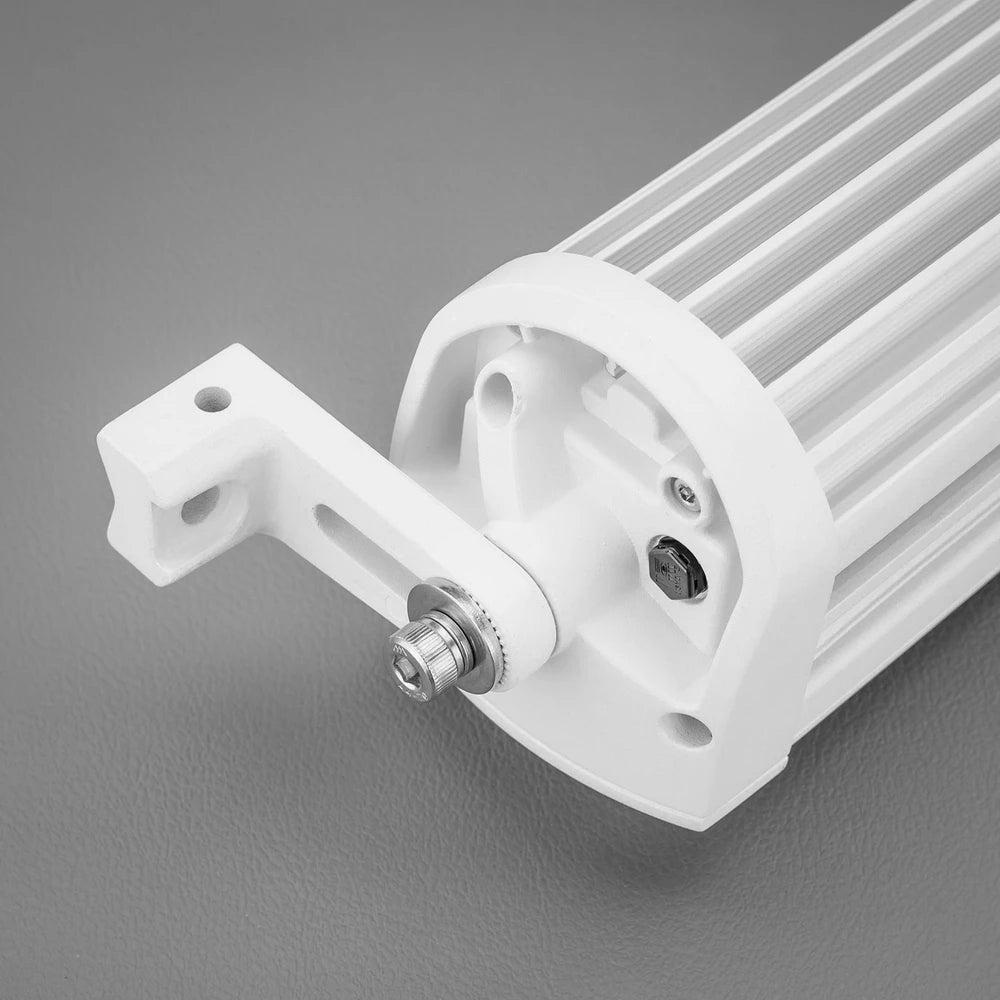

- Includes adjustable side brackets
- Protected against reverse polarity
- Shockproof, IP68 waterproof, UV Shielded
- Protected against RFI / EMC Interference
- Voltage & current surge protection
- Pulse Width Modulation Thermal Management
NOTE: NO HARNESS INCLUDED.
Click here to find your vehicle-compatible Piggyback Adapter.
Tech Specs
| MAIN BEAM LED COUNT | 12 x 15W |
| VOLTAGE | 12V & 24V |
| DRL VOLTAGE | 12-24V compatible |
| LENS MATERIAL | Optical Grade, Hard Coated Lexan |
| LUMENS | 12,000 |
| HOUSING MATERIAL | 6063 Extrusion |
| AMPERES | 12.4A @ 13.2v |
| LIFESPAN | 50,000 |
| SPOT BEAM | Driving Beam |
| INGRESS PROTECTION | IP68 |
| OPERATING TEMP | -40°C ~ +150°C |
| WEIGHT | 3.645kg |
| CERTIFICATES | E-Mark R10 | CE ✓ |
