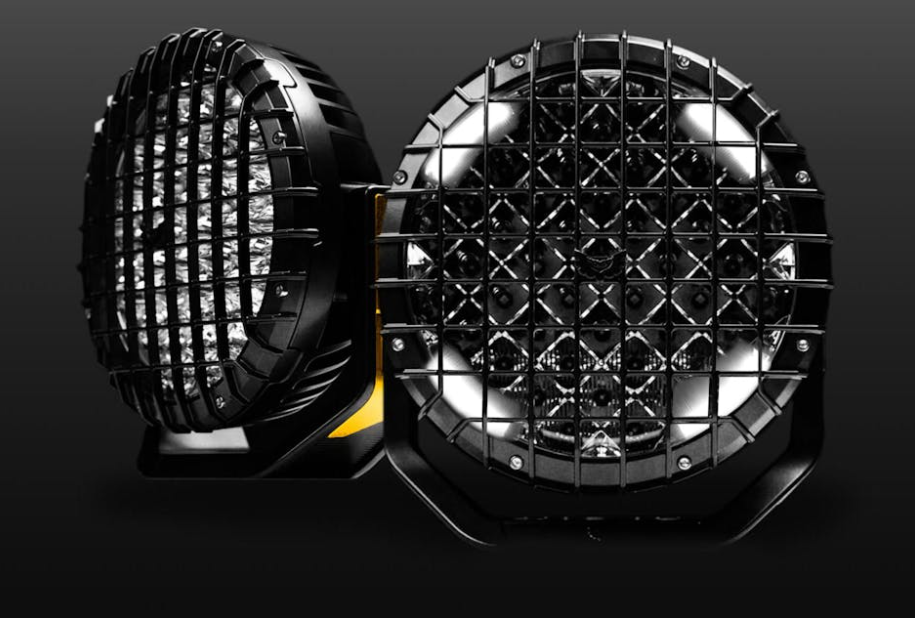

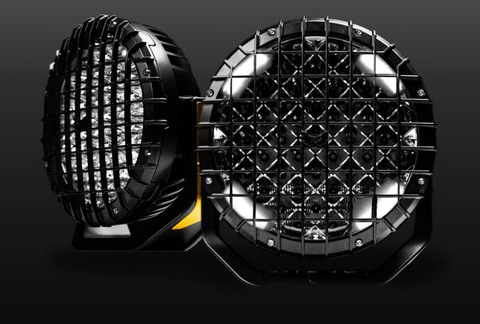

The Caged option in the Type-X™ PRO PLUS range takes inspiration from military-spec design, delivering an aggressive, industrial look paired with extreme durability. Featuring the powder-coated cast alloy caged bezel and optional shoulder trims, it offers a tough, no-nonsense aesthetic that’s built to handle the harshest conditions.
Beyond its bold appearance, the Caged DRL variant delivers serious performance, throwing light out to 1.5km. Engineered for both on-road and off-road use, it combines rugged construction with proven lighting performance wherever your journey takes you.
Tech Specs
|
OPTICAL BEAM (DRL) |
Combo Beam (36x Spot | 9x Flood | 4x DRL) |
|
TESTED LUMENS (DRL) |
29,664lm (Pair) |
|
1 LUX @ (DRL) |
1540 Metres (Pair) |
|
CANDELA (DRL) |
1,846,240cd (Pair) |
|
AMP DRAW (DRL) |
7.98A @ 24V |
|
INGRESS PROTECTION |
IP68 | Submersible up to 3m |
|
COLOUR TEMP (CCT) |
5000 Kelvin |
|
VOLTAGE COMPATIBILITY |
10 - 30V DC |
|
WEIGHT (EACH – DRL) |
3.65kg (Each) |
|
OPERATING VOLTAGE |
-40°C to 60°C |
What's Included
- 2 x Type-X™ Pro Plus DRL LED Driving Lights
- 2 x Type-X™ Pro Plus Caged Bezels
- 2 x Type-X™ Pro Plus Modern Yellow Shoulder Trims
- 1 x High Beam Triggered Wiring Harness
