SKU: LEDST1K-20-20L
THE NERDY STUFF
- 20 x 5W OSRAM LEDs
- RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
- IP68 - Submersible to 3m
- Environmentally sealed Deutsch DT-2 connectors
- Innovative hooded optics
- Driving Beam E mark compliant beam.
- Heavy Duty Adjustable Bottom Mounts & Side bracket included.
- Reverse Polarity Protected Circuit (RPPC)
- Electronic Thermal Management
- Built-in Voltage Surge Protection
INCLUDES: Our high current Easy-Fit Plug & Play Wiring Harness. (Switch, Fuse, Relay HB3 and H4 high-beam piggy back adaptors)
Click here to find your vehicle-compatible Piggyback Adapter.
Tech Specs
| LED MANUFACTURER | OSRAM |
| LED COUNT | 20 |
| VOLTAGE | 9V - 32V |
| CURRENT DRAW (AMPERES) | 8.0a @13.6v |
| LENS MATERIAL | Optical Grade, Makrolon |
| RAW LUMENS | 5,920Lm |
| PEAK INTENSITY (CANDELA) | 219,792cd |
| HOUSING MATERIAL | A360.0 Cast face plate, extruded Aluminum heat sink |
| LUMEN MAINTENANCE | 50,000 (LM80) |
| INGRESS PROTECTION | IP68 |
| OPERATING TEMP | -40°C~+150°C |
| WEIGHT | 1.290kg |
What's Included

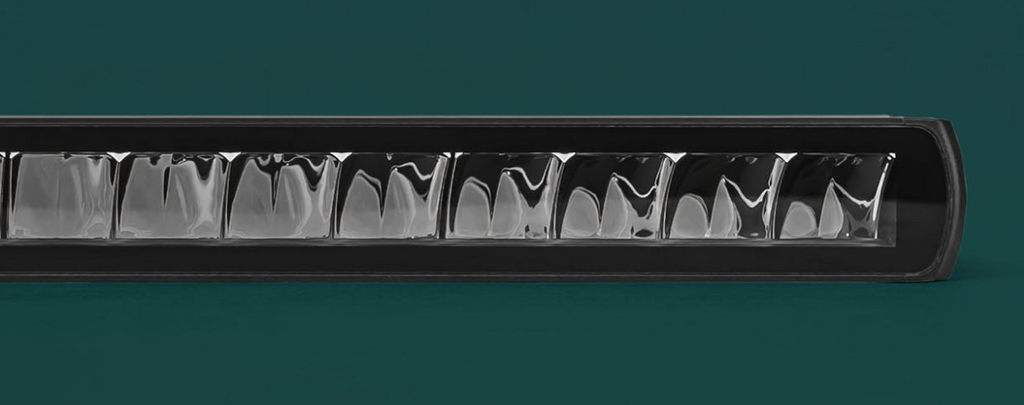

- ST1K 21.5 Inch LED Light Bar
- 2 x Side Brackets
- 2 x Adjustable Sliding Brackets
- Easy Fit High Beam Wiring Harness
- H4 & HB3 adapters to High Beam
- Installation Manual
