SKU: LEDST3K-20L
MARKET LEADING PERFORMANCE.

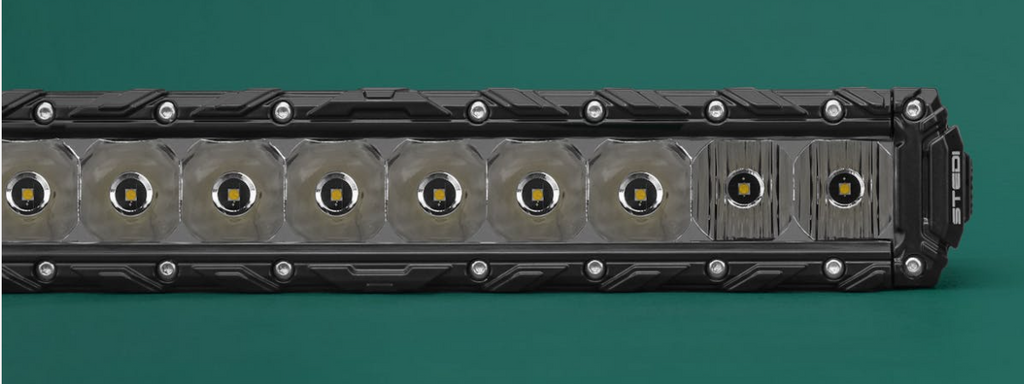

ST3K-20L features 20 of OSRAM’s® finest OSLON® LED, selected for unrivalled efficiency.
4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 493m
True White 5700K Colour temperature offers stunning clarity and definition.
Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.
BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.
Finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.
Pressure Equalization vent | Protects against water ingress, dust & contaminants.
IP68 | Dust & Particle tight + Water-proof up to 3 meters!
Environmentally sealed Deutsch DT-2 connector.
Protected against EMC and RFI.
Protected against EMC and RFI.
Ultra-Low 51mm profile without the side brackets & 63mm with side brackets!
Click here to find your vehicle-compatible Piggyback Adapter.
Includes our Easy Fit High Beam Plug and Play Wiring Harness which includes H4 and HB3 Adapters making for an easy connection to high beam. Unlike the copycat harnesses on the market ours has built in electronics making our harness compatible with even the most modern and sophisticated wiring systems
Backed by a 5 Year Replacement Warranty.
Please Note: Upon unboxing the ST3K, you will hear a distinct rattle. The sound that you are hearing is from the captive nuts in the end caps for the side brackets. This is perfectly normal and will go away once the side brackets are installed and tightened.
Tech Specs
| LED | 20 x Osram Oslon White |
| EFFECTIVE LUMEN | 4,100Lm |
| PEAK INTENSITY | 243,200cd |
| OPERATING VOLTAGE | 10-30V DC |
| IP RATING | IP68 |
| CURRENT DRAW | 4.3A @ 13.5v |
| COLOUR TEMPERATURE (CCT) | 5700 Kelvin |
| HOUSING MATERIAL | Aluminium Extrusion & Cast |
| LENS | GE™ Lexan |
| MOUNTING BRACKET | Powder Coated 3mm Stainless Steel |
| BOLTS AND FITTINGS | 3 Series Stainless Steel |
| BEAM TYPE | Flood Spot Combo |
| LIFESPAN | 50,000 Hours |
| WEIGHT | 1.855 |
| OPERATING ENVIRONMENT | -40° to +50° Celsius |
| PHOTOMETRIC DATA | |
| 10 M | 2, 430 Lx |
| 50 M | 97 Lx |
| 100 M | 24 Lx |
| 200 M | 6 Lx |
| 493 M | 1 Lx |
What's Included
- ST3K 21.5inch LED LIGHT BAR
- Stainless Fasteners
- Stainless Steel Side Mounting Brackets
- 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
- H4 and HB3 adapters included
- Wiring Instructions
