STEDI

PRP-MDRNCLASS-NDRL-BND-1

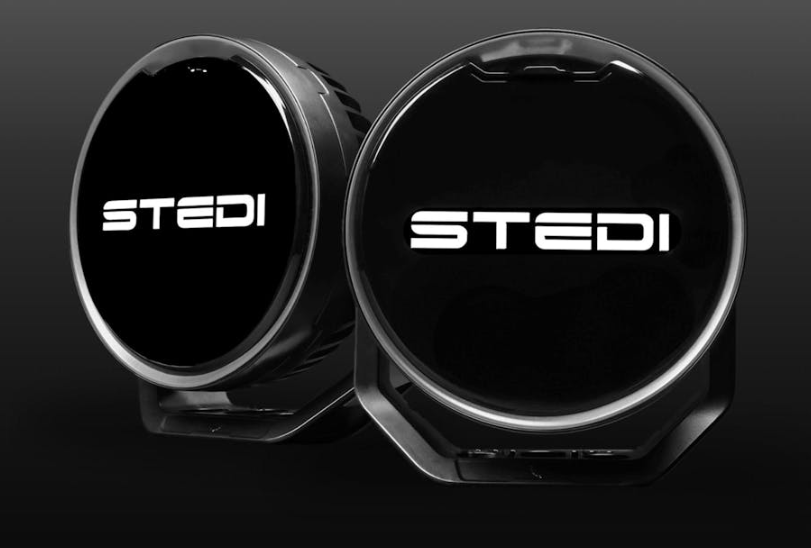

Type-X™ Pro Plus 8.5" Non-DRL Modern Classic Pair

  • Sale
  • Regular price $839.00
Tax included. Shipping calculated at checkout.


SKU: PRP-MDRNCLASS-NDRL-BND

The Modern Classic option in the Type-X™ PRO PLUS range takes minimalist design to the next level, delivering a sleek, streamlined profile inspired by contemporary automotive styling. Featuring the modern bezel, a refined modern classic cover, and modern fascias available in 9 colourways, it offers subtle personalisation while maintaining a clean, polished look. Optional shoulder trims provide additional refinement to match your vehicle’s build.

Beyond its understated design, the Modern Classic non-DRL variant delivers serious performance, throwing light over 1.6km. Engineered for both on-road and off-road use, it combines advanced lighting technology with proven reliability wherever your journey leads.

Please Note: That this product kit requires assembly of the final product.

Tech Specs

Non-DRL

LED 33x CREE XP20 + 12x CREE XPP
RAW LUMENS     18,280 lm (each)
TESTED LUMENS 14,893 lm (each) | 30,922 lm (Pair)
AMP DRAW 15.9 @ 12V (each)
POWER DRAW 190W (each)
CANDELA 976,000 cd (Single) | 1,952,000 cd (Pair)
BEAM PATTERN Combo(36 Spot + 9 Flood)
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT) 5000K
VOLTAGE COMPATIBILITY 10v - 30v
LUMEN MAINTENANCE 50,000 LM-80
WEIGHT 3.2kg (each)
OPERATING TEMP -40°C - 60°C
PHOTOMETRIC DATA:
990m 1 LX (Single)
1634m 1 LX (Pair)



What's Included

  • 2 x Type-X™ Pro Plus Modern Classic LED Driving Lights
  • 2 x Type-X™ Pro Plus Modern Classic Bezel
  • 2 x Type-X™ Pro Plus Modern Classic Fascia (User Selected)
  • 2 x Type-X™ Pro Plus Modern Classic Covers (User Selected)
  • 2 x Type-X™ Pro Plus Modern Shoulder Trim (User Selected)
  • 1 x (Optional) Type-X™ Pro Plus Anti-Theft Kit
  • 1 x High Beam Triggered Wiring Harness (User Selected)
